PDP Concept

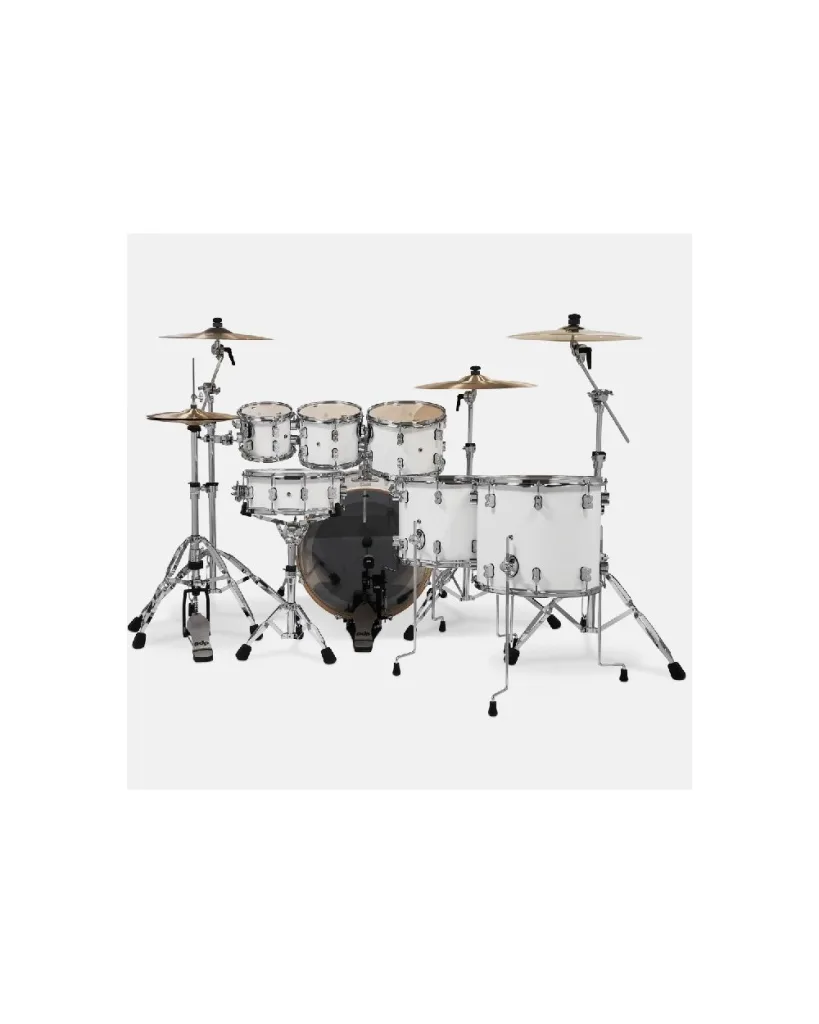

The PDP Concept Maple (by Pacific Drums and Percussion, a subsidiary of DW Drums) is a premier boutique-style drum kit engineered to deliver rich, warm resonance and professional-grade performance. Crafted with 100% European Maple shells, the Concept Maple incorporates many of DW’s flagship innovations, including True-Pitch fine-threaded tension rods, STM (Suspension Tom Mount) systems for maximum shell resonance, and iconic Dual-Turret lugs.

Designed for exceptional tonal versatility across live performances and studio recording, the 7-ply maple tom and bass drum shells produce punchy low-end response with balanced mid-range focus. The included 10-ply maple snare drum features DW’s renowned MAG Throw-Off strainer and Copper Snare Wires, delivering crisp sensitivity, articulate attack, and reliable performance.

Technical Specifications

  • Shell Material: 100% European Maple
  • Shell Construction: 7-ply Tom & Bass Drum Shells / 10-ply Snare Drum Shell
  • Bearing Edges: 45-degree hand-applied bearing edges
  • Hardware & Mounting: STM (Suspension Tom Mount) system, True-Pitch tension rods, Dual-Turret lugs, counter hoops
  • Snare Drum Features: DW MAG Throw-Off strainer, 20-strand copper snare wires
  • Bass Drum Dimensions: 22 in x 18 in
  • Rack Tom Dimensions: 10 in x 8 in & 12 in x 9 in
  • Floor Tom 1 Dimensions: 14 in x 12 in
  • Floor Tom 2 Dimensions: 16 in x 14 in
  • Snare Drum Dimensions: 14 in x 5.5 in
  • Total Shell Pack Weight (Approx.): 78 lbs
