Ampeg SVT-410HLF

The Ampeg SVT-410HLF is a high-performance, deep-bass enclosure designed for bassists who require maximum low-end punch, high power handling, and exceptional clarity. Built around a bass-reflex design with custom front ports, this 4×10 cabinet moves vast amounts of air to deliver extended low-frequency output down to 28 Hz, eliminating the need for a separate 15-inch enclosure in many stage rigs.

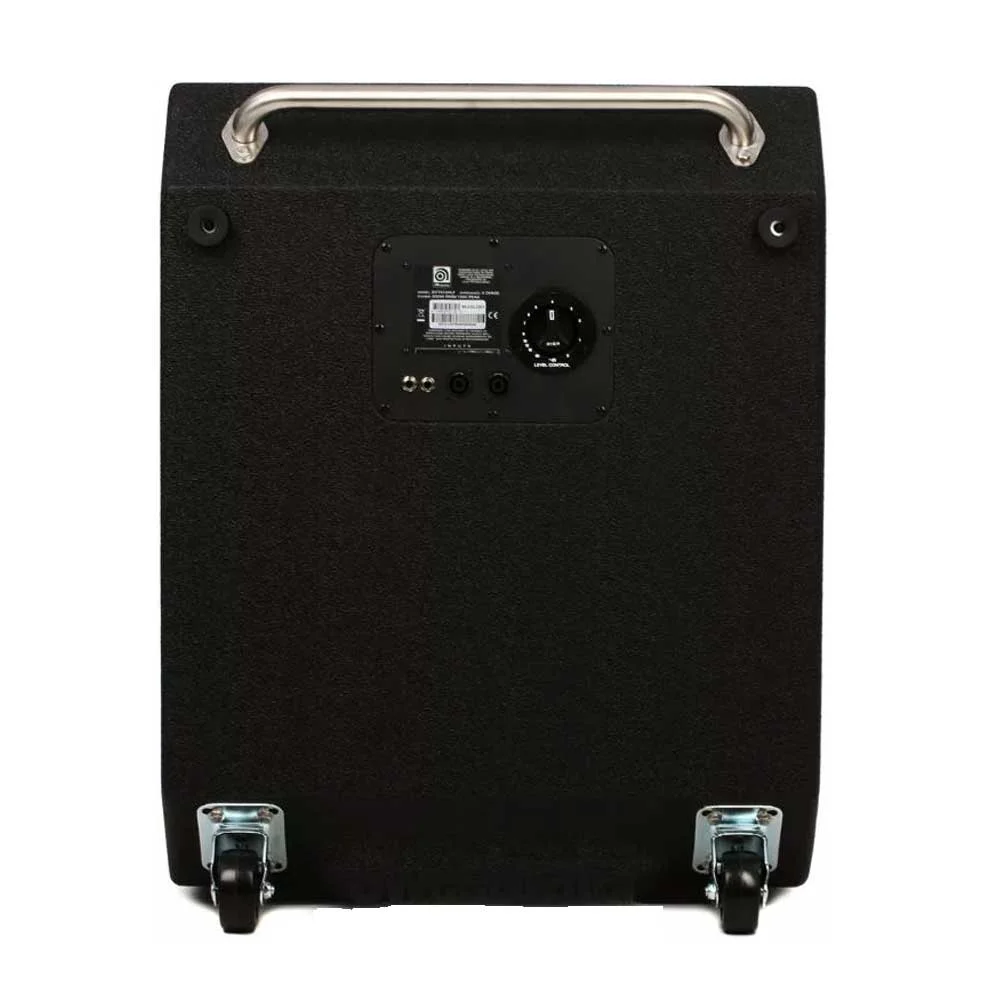

Equipped with four custom 10-inch speakers and a 1-inch high-frequency horn driver with a variable L-pad level attenuator, the SVT-410HLF offers a tight, articulate midrange and bright high-end response balanced against its thunderous bottom end. Constructed from heavy-duty Baltic birch plywood, it features rugged tilt-back handle rails, rear-mounted wheels, and corner protectors for effortless transport between stage and studio.

Technical Specifications

  • Enclosure Type: Bass-Reflex / Front-Ported Cabinet
  • Power Handling: 500 W RMS / 1000 W Peak
  • Impedance: 4 Ω
  • Speakers: 4 x 10″ Custom Ampeg Low-Frequency Drivers
  • High-Frequency Driver: 1″ Horn Driver with Variable L-Pad Level Control
  • Frequency Response (-3 dB): 48 Hz – 18 kHz
  • Usable Low Frequency (-10 dB): 28 Hz
  • Sensitivity: 98 dB SPL @ 1W/1m
  • Dimensions (Width x Height x Depth): 610 mm x 762 mm x 483 mm (24 in x 30 in x 19 in)
  • Weight: 38.5 kg (85 lbs)
  • Inputs/Outputs: Neutrik Speakon and dual 1/4″ jack connections
